With excellent airflow and overspray control, now it is much easier to achieve a high quality paint application.

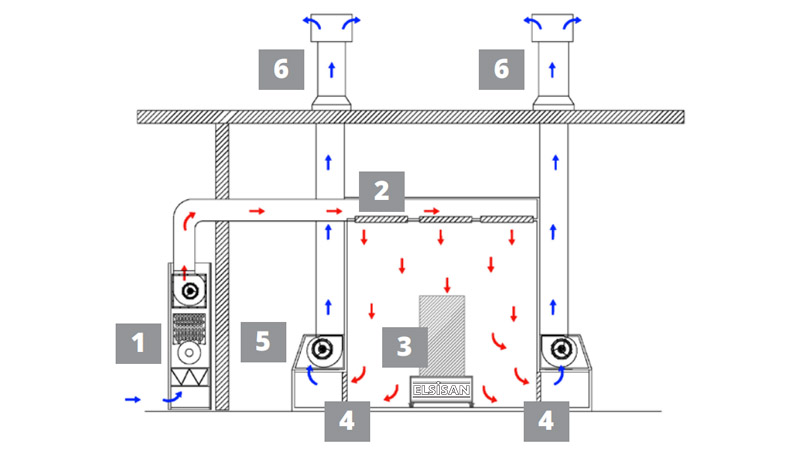

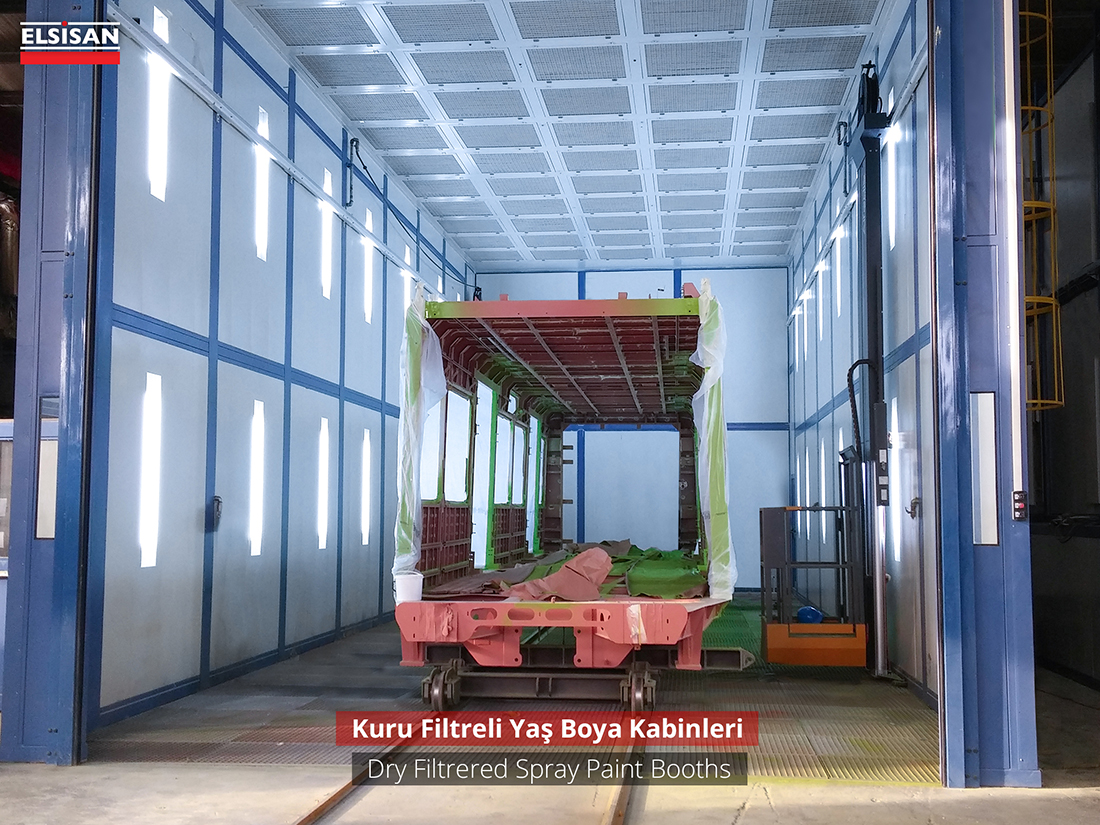

These booths are specifically designed to efficiently collect, filter and exhaust overspray particles while manually applying liquid spray paint. Paint particles exhausted in this type of cabins are kept in paper or fiber filters and are exhausted after being filtered.

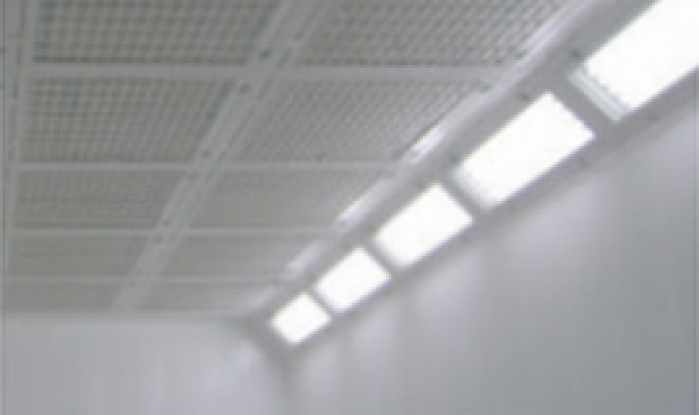

Booth Lighting
Ex-proof lightings we use in our booths are designed to give you precise lighting and minimal shadows.

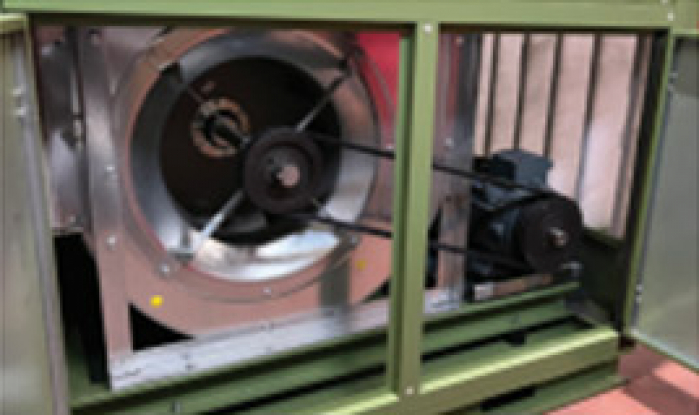

Fans and Motors
With belt driven radial fans and high efficiency motors our booths deliver high performance in air ventilation.

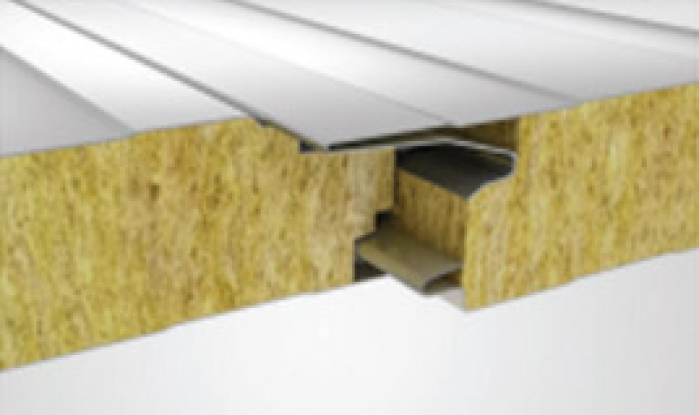

Materials & Construction
Insulated double sided panels made of powder coated galvanized steel are used in our booths.

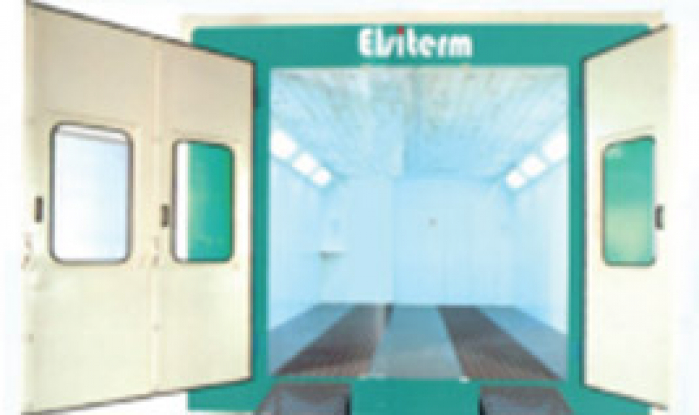

Doors
Different door options are offered in our booths according to demand such as spiral, foldable and hinged door types.

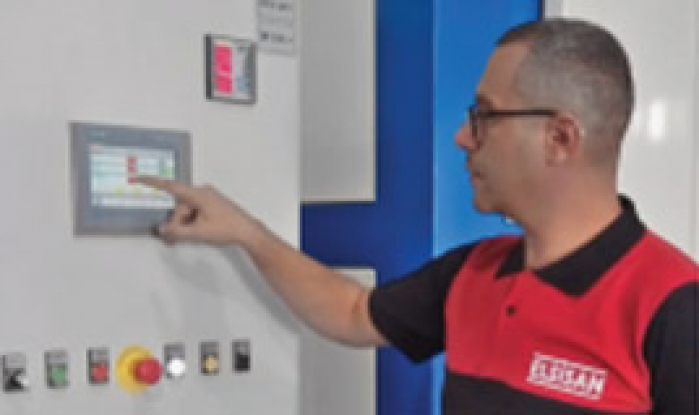

Control Panel
Different modes, programmable alarms and levels can be controlled with optional PLC control panels used in our booths.

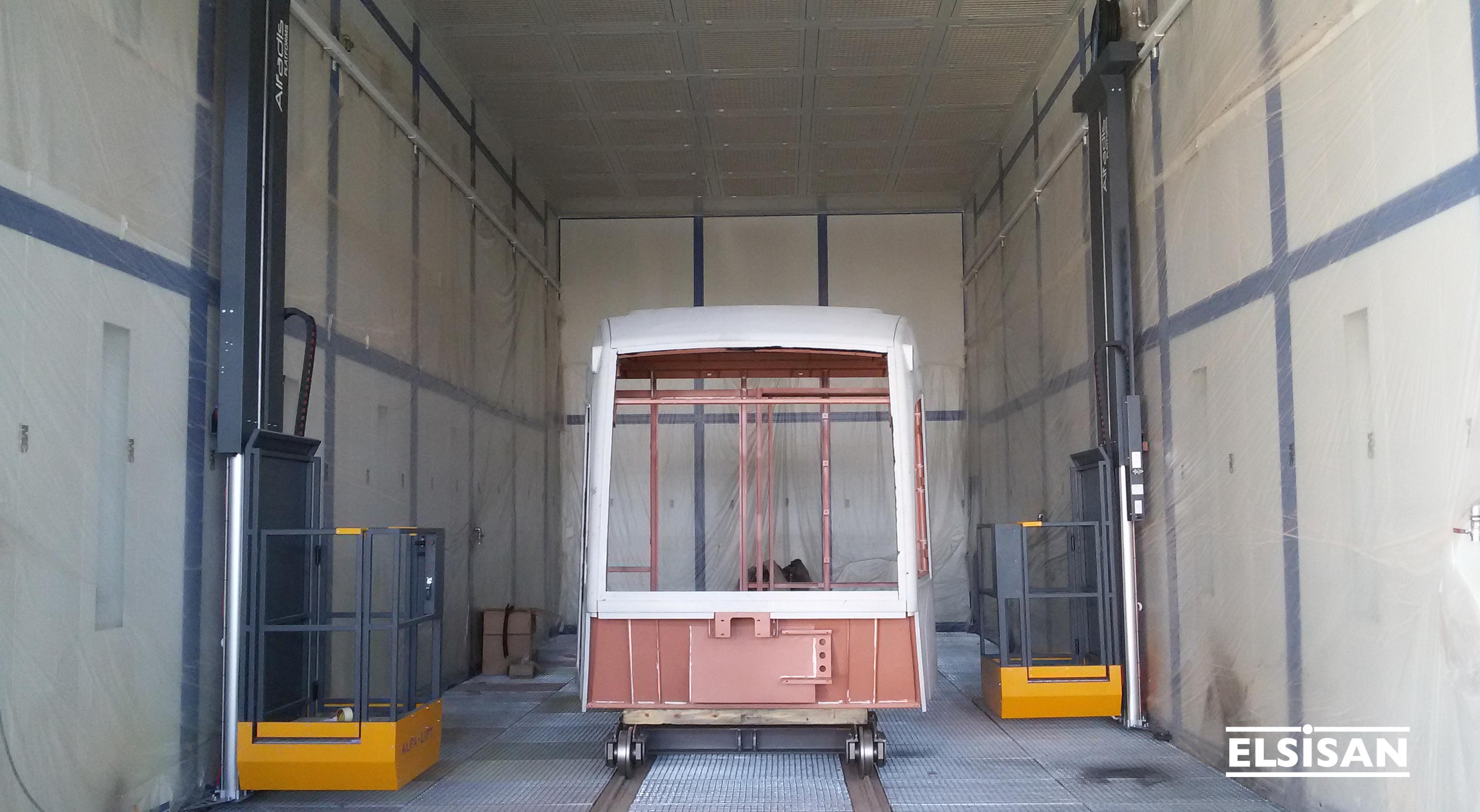

Booth Lift
Increase your efficiency in the booth with personnel access lifts that provide ease of reach and safety.
Air make-up units (AMU) can optionally be placed on top or next to the booth in horizontal and vertical positions. According to customer demand, the units can be positioned on the side walls and roofs of the factory in desired positions. Air units can be designed to supply air from outside or inside, depending on demand. Heating units designed with direct or indirect combustion are available upon request. In addition, additional features such as humidification and cooling can be added according to the demanded air quality

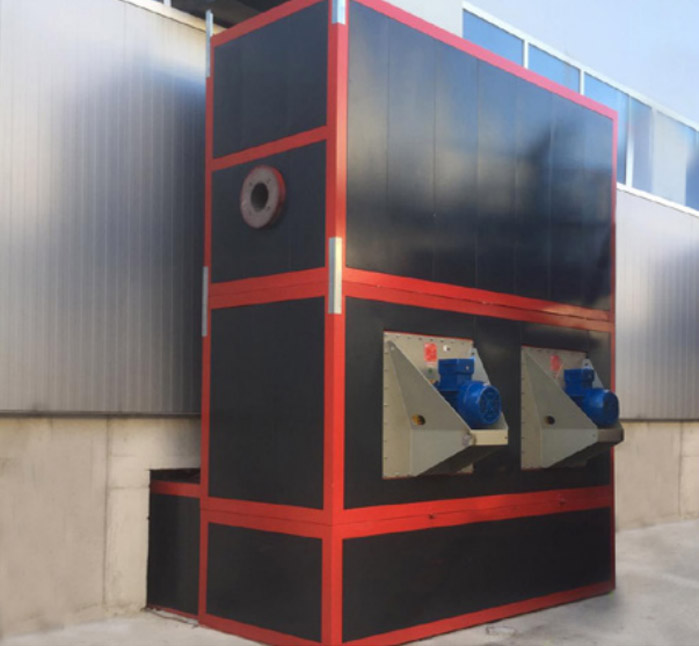

AMU Unit placed on outer factory walls

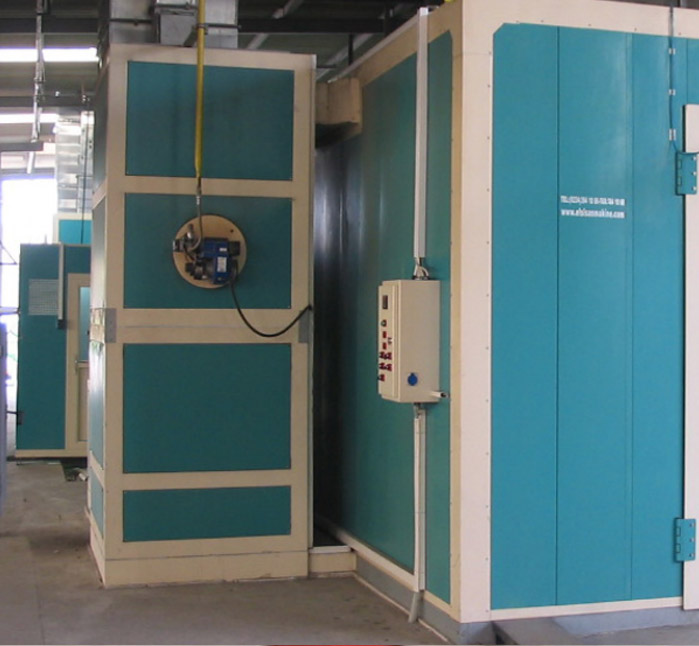

AMU Unit placed next to the booth

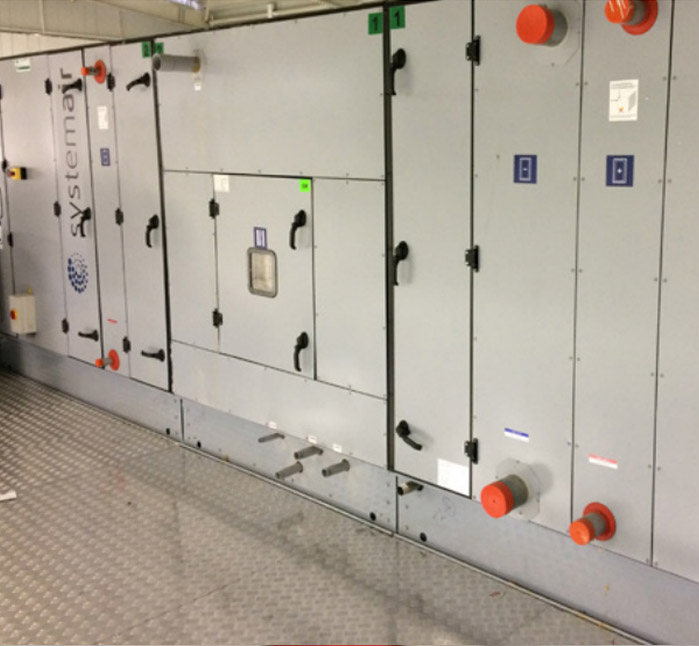

AMU Unit placed on top of the booth
Customizaton to Fit Your Needs:
Elsisan's dry filter spray booths are fully customizable to match your specific needs, from heating elements to material and process requirements. We can design a solution that meets your exact specifications.
We offer a range of dry filter enclosed spray booths designed for efficient overspray capture, consistent airflow and easy maintenance. They are ideal for high quality painting and coating applications. Our standard models cover many sizes and specifications, and we also provide custom solutions tailored to your requirements for dimensions, airflow, filtration, lighting and controls.
| Code | No Air Make Up Unit | Model | With Air Make Up Unit (Oven Function) |
Model | Interior Dimensions (mm) (W x D x H) |
|---|---|---|---|---|---|
| YK - C Crossdraft |
 |
YK-C-8 |  |
YK-CO-8 | 5000 x 8000 x 5000 |
| YK-C-12 | YK-CO-12 | 5000 x 12000 x 5000 | |||
| YK-C-16 | YK-CO-16 | 5000 x 16000 x 5000 | |||
| YK-C-18 | YK-CO-18 | 5000 x 18000 x 5000 | |||
| YK-C-20 | YK-CO-20 | 5000 x 20000 x 5000 | |||
| YK - B Semi Downdraft |
 |
YK-B-8 |  |
YK-BO-8 | 5000 x 8000 x 5000 |
| YK-B-12 | YK-BO-12 | 5000 x 12000 x 5000 | |||
| YK-B-16 | YK-BO-16 | 5000 x 16000 x 5000 | |||
| YK-B-18 | YK-BO-18 | 5000 x 18000 x 5000 | |||
| YK-B-20 | YK-BO-20 | 5000 x 20000 x 5000 | |||
| YK - S Side Downdraft |
 |
YK-S-8 |  |
YK-SO-8 | 5000 x 8000 x 5000 |
| YK-S-12 | YK-SO-12 | 5000 x 12000 x 5000 | |||
| YK-S-16 | YK-SO-16 | 5000 x 16000 x 5000 | |||
| YK-S-18 | YK-SO-18 | 5000 x 18000 x 5000 | |||
| YK-S-20 | YK-SO-20 | 5000 x 20000 x 5000 | |||

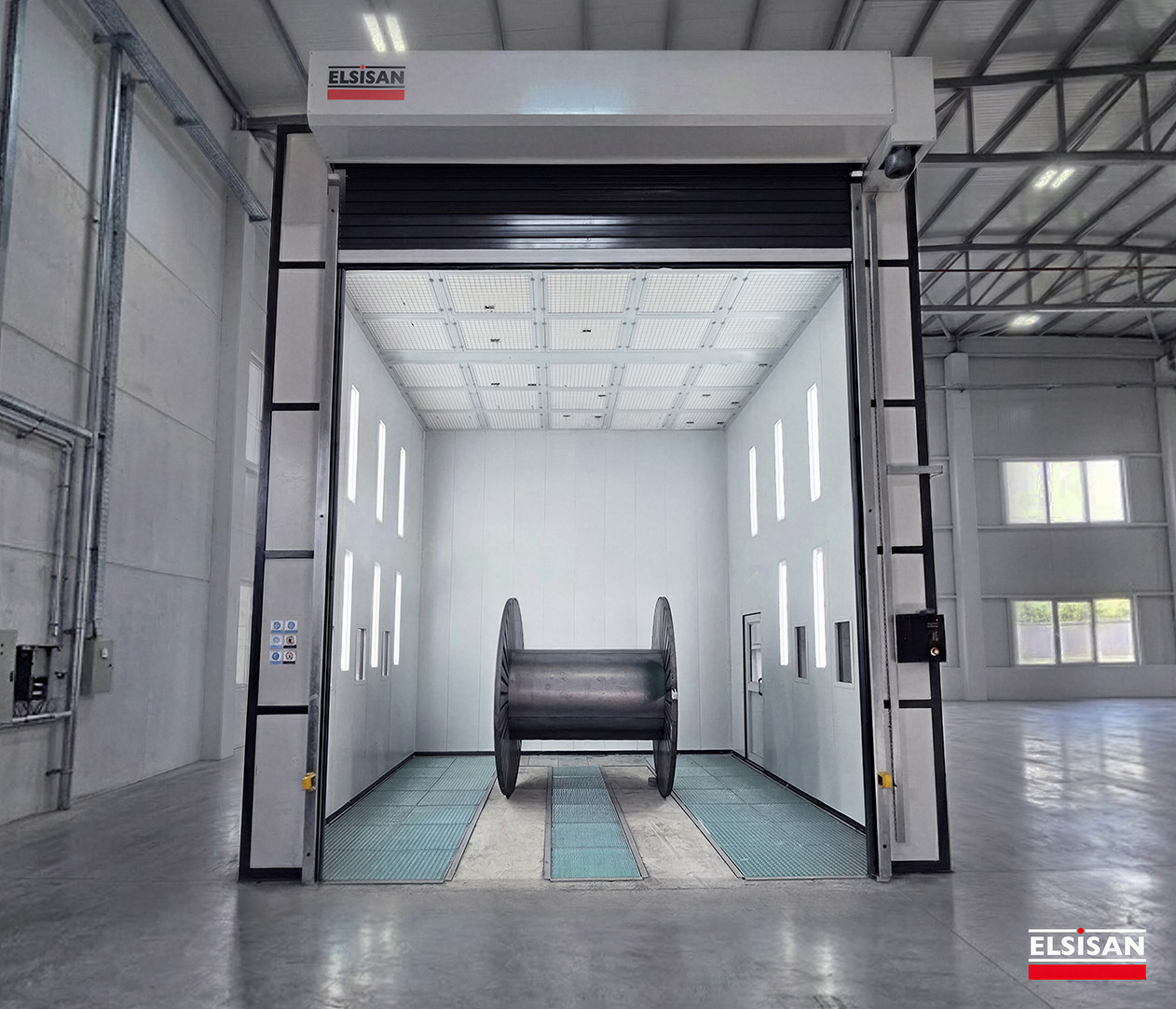

| YK - D Downdraft |
 |
YK-D-8 |  |
YK-DO-8 | 5000 x 8000 x 5000 |
| YK-D-12 | YK-DO-12 | 5000 x 12000 x 5000 | |||
| YK-D-16 | YK-DO-16 | 5000 x 16000 x 5000 | |||
| YK-D-18 | YK-DO-18 | 5000 x 18000 x 5000 | |||
| YK-D-20 | YK-DO-20 | 5000 x 20000 x 5000 |
Customizaton to Fit Your Needs:
Elsisan's dry filter spray booths are fully customizable to match your specific needs, from heating elements to material and process requirements. We can design a solution that meets your exact specifications.
