Rotating Spray Washing Machines - YKM

These fully automated washing machines with closed systems are designed to wash and dry parts that are loaded into rotating baskets.

Different sized washing machines can be designed and manufactured according to the dimensions of the materials to be washed.

Areas of Use: It is used for the cleaning of greasy parts that need to be cleaned after machining and parts that need chemical cleaning before painting.

Product Video

A Quick Look at Our Rotating Spray Washing Systems

Watch this video for a quick look at the product's main features, technical options and usage details.

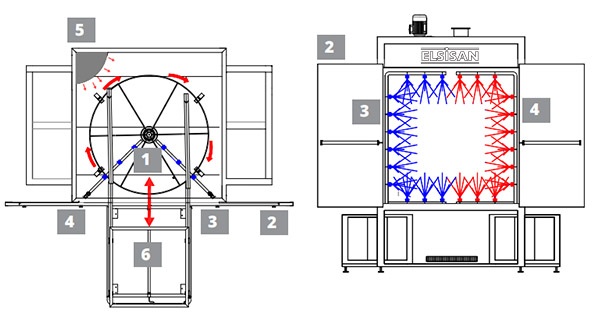

Elements of the System
1Loading
2Automatic Doors
3Degreasing Spray Nozzles
4Rinsing Spray Nozzles
5Drying
6Unloading
Rotating Spray Washing System

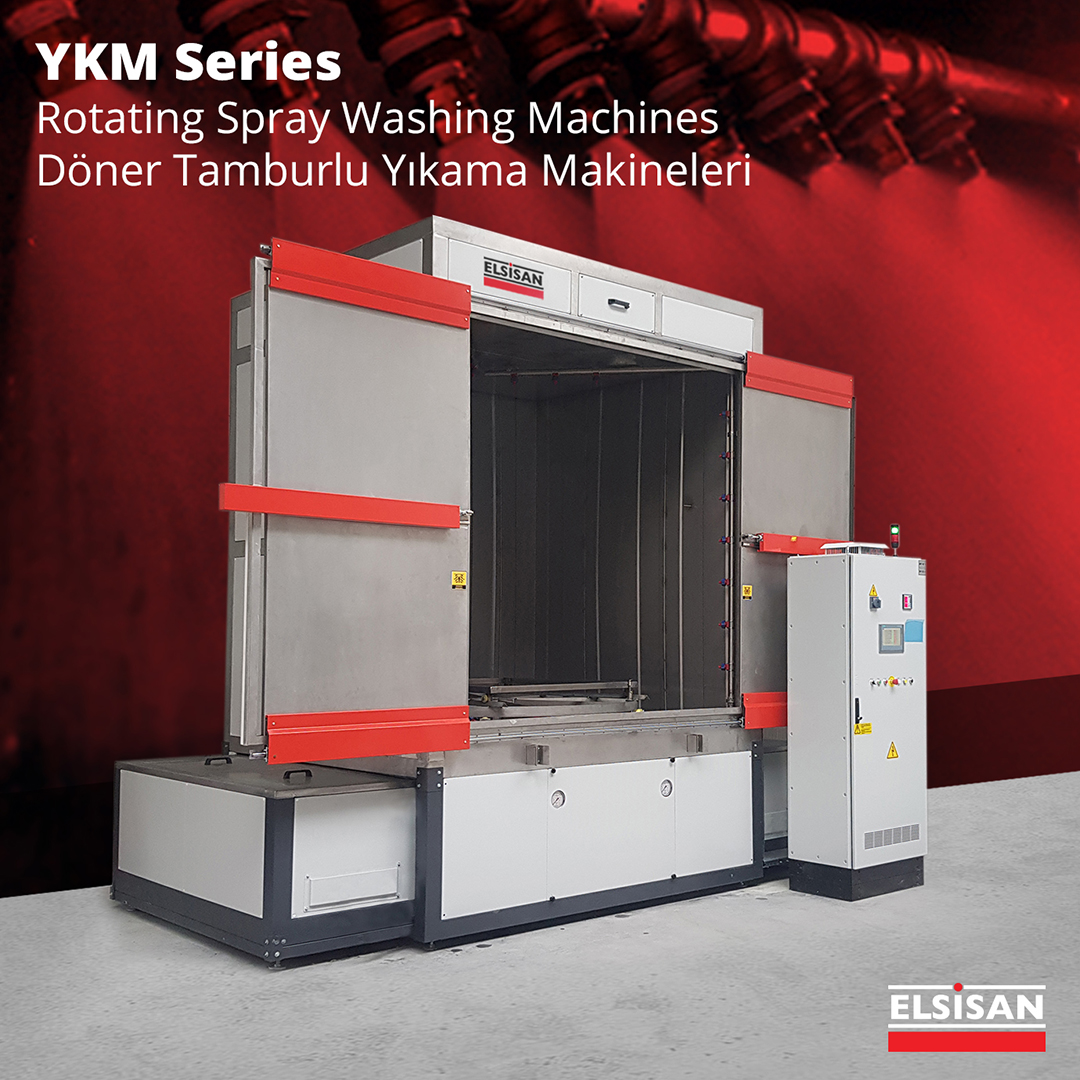

Shown model: YKM 150 rotating spray washing system
Features
  • Control Panel
  • Stainless steel interiors
Options
  • Tank heating can be optionally added.
Additional Details
Control Panel

CONTROL PANEL

Control panel provides control of process times which are stored according to different parts.

Standard Models
Model name Loading Height Basket diameter Outer dimensions (w x d x h) Nozzle count
YKM 88 800 mm 800 mm 2920 x 1330 x 3140 mm 21
YKM 100 1000 mm 1000 mm 3100 x 1580 x 3810 mm 21
YKM 150 1500 mm 1500 mm 3700 x 2050 x 3380 mm 24

Customizaton to Fit Your Needs:

Elsisan's rotating spray pretreatment washing machines are fully customizable to match your specific needs, such as part dimensions and process requirements. We can design a solution that meets your exact specifications.
