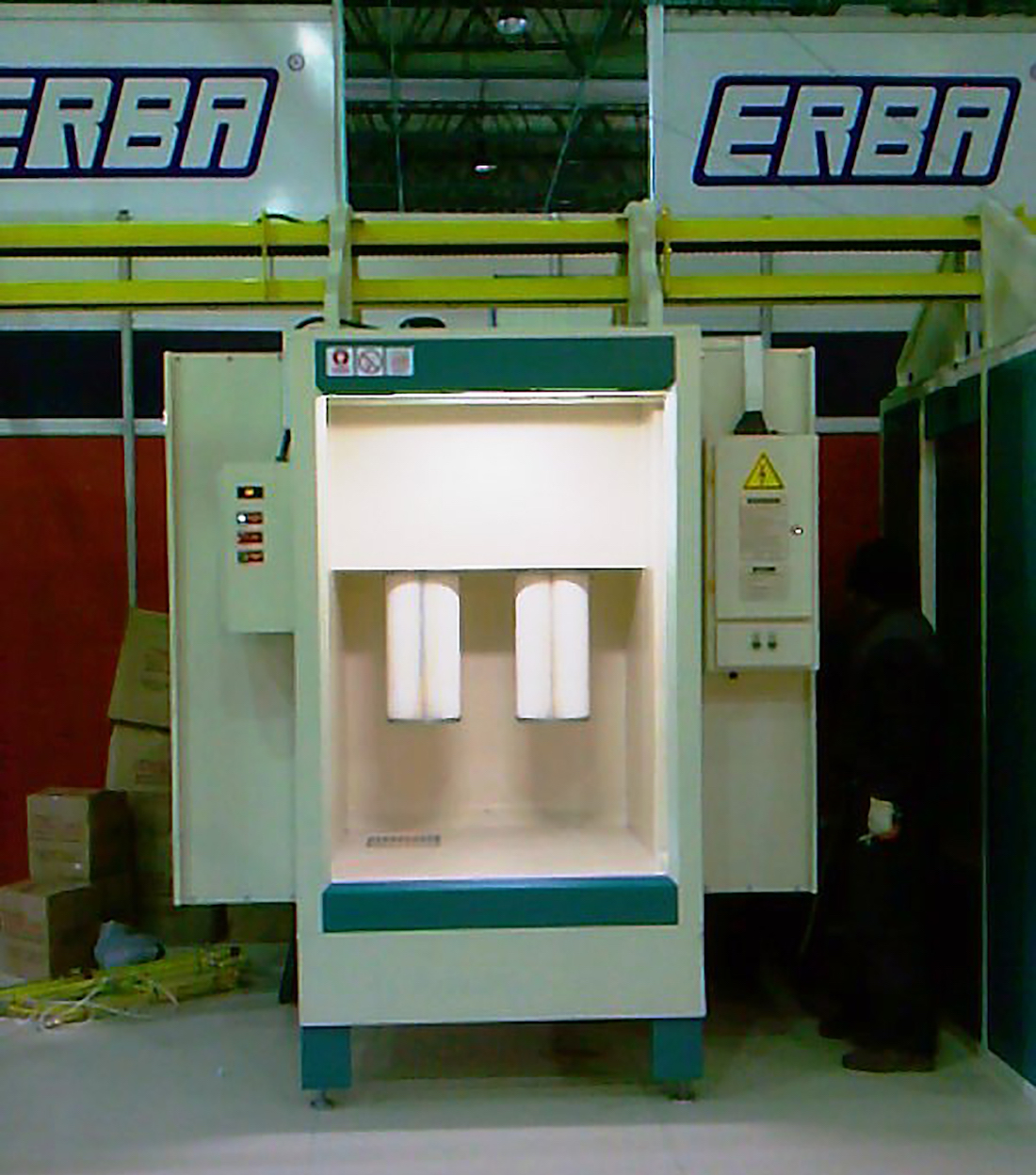

Our Manual Booths are the ideal economical solution for small batch production numbers with their cartridge recovery feature and compact design.
Our Manual Booth series offers the operator maximum comfort while ensuring you achieve the highest possible performance. Thanks to its durable construction and recovery feature, it contributes to your low operating costs. By keeping the dust in the cabin, it provides a clean and safe working environment for your business.

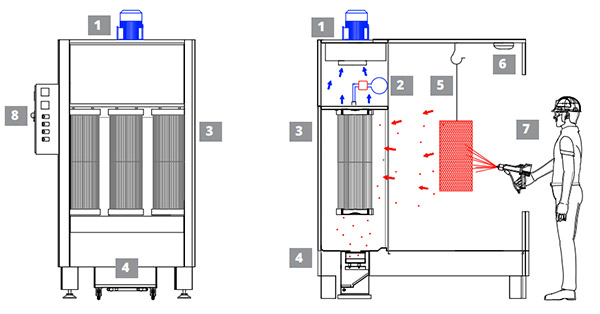

Automated Reverse-Pulsing
Thanks to the time adjustable reverse-pulsing function, the air flow directed from the inside to the outside. Accumulated dust is then cleaned from the filter surface and recycled.
Rotating Hook for Parts
Parts can be fixed from a single point and painted by rotating themselves with the help of a rotating hook located in the cabin’s ceiling.
Vibrating Filter Sieve
Vibrating Filter Sieve can be easily connected to the guns by the injector socket. It has wheels for easy transportation and gasketed compression mechanism.
Customizaton to Fit Your Needs:
Elsisan’s manuel powder coating booths are fully customizable to match your specific needs, from dimensions to material and process requirements. We can design a solution that meets your exact specifications.
We offer a range of manual powder coating booths designed for efficient particle capture, consistent airflow and easy maintenance. Our standard models cover many sizes and specifications, and we also provide custom solutions tailored to your requirements for dimensions, airflow, filtration, lighting and controls.

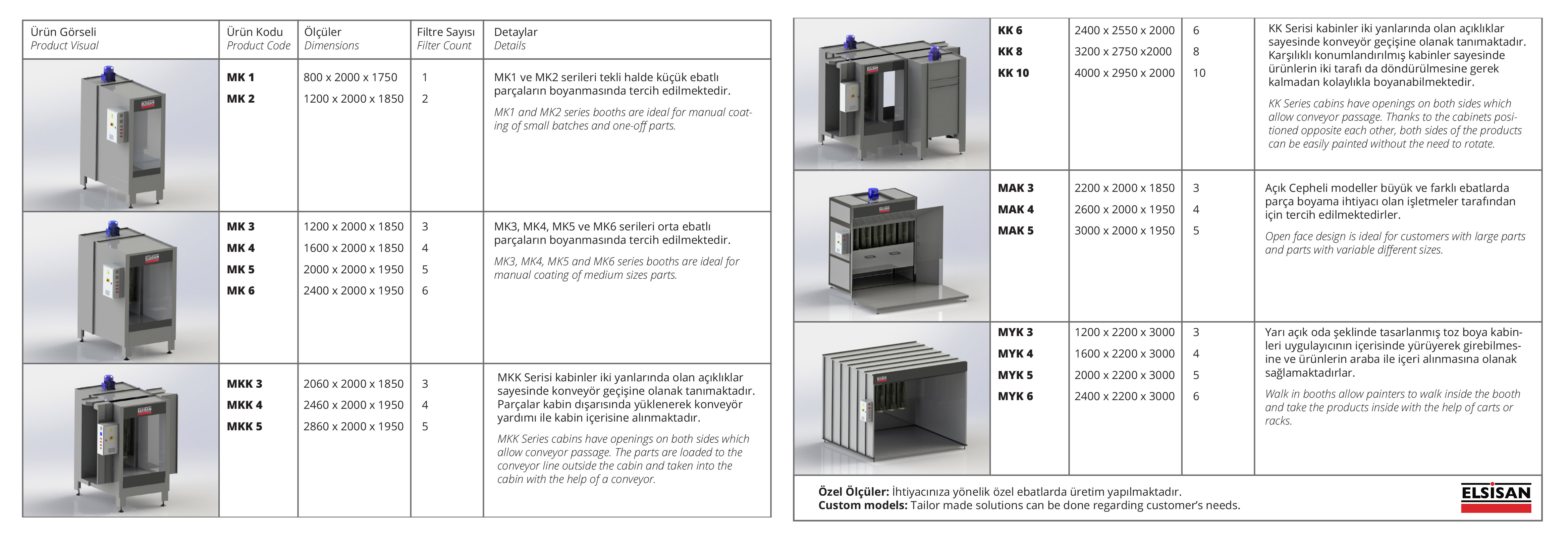

| Product Visual | Product Code | Dimensions | Filter Count | Details |
|---|---|---|---|---|
 |

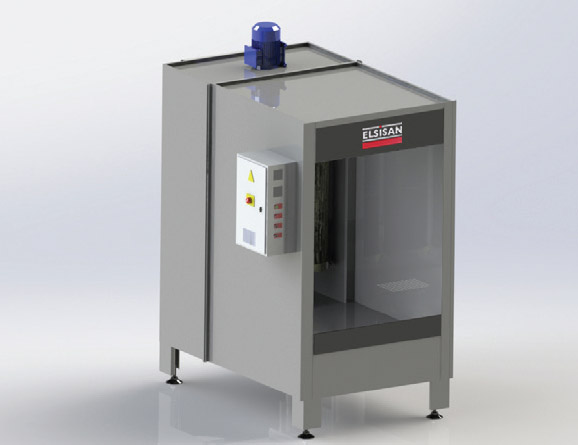

MK 1 | 800 x 2000 x 1750 | 1 | MK1 and MK2 series booths are ideal for manual coating of small batches and one-off parts. |
| MK 2 | 1200 x 2000 x 1850 | 2 | ||
| MK 3 | 1200 x 2000 x 1850 | 3 | MK3, MK4, MK5 and MK6 series booths are ideal for manual coating of medium sizes parts. | |
| MK 4 | 1600 x 2000 x 1850 | 4 | ||
| MK 5 | 2000 x 2000 x 1950 | 5 | ||
| MK 6 | 2400 x 2000 x 1950 | 6 | ||
 |

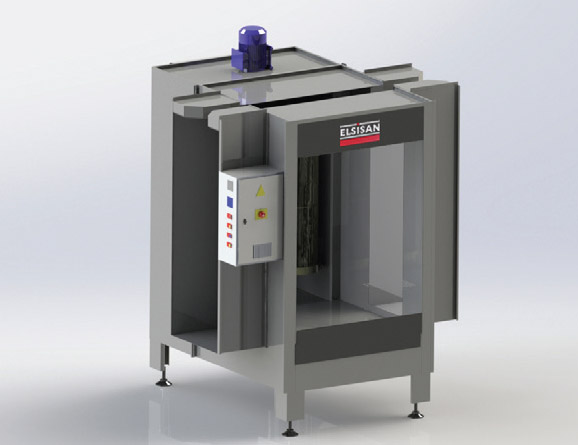

MKK 3 | 2200 x 2000 x 1850 | 3 | MKK Series cabins have openings on both sides which allow conveyor passage. The parts are loaded to the conveyor line outside the cabin and taken into the cabin with the help of a conveyor. |
| MKK 4 | 2600 x 2000 x 1950 | 4 | ||
| MKK 5 | 3000 x 2000 x 1950 | 5 | ||
 |

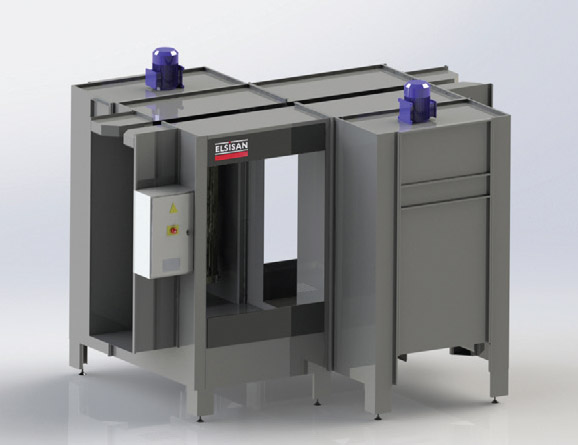

KK 6 | 2400 x 2550 x 2000 | 6 | KK Series cabins have openings on both sides which allow conveyor passage. Thanks to the cabinets positioned opposite each other, both sides of the products can be easily painted without the need to rotate. |
| KK 8 | 3200 x 2750 x2000 | 8 | ||
| KK 10 | 4000 x 2950 x 2000 | 10 | ||
 |

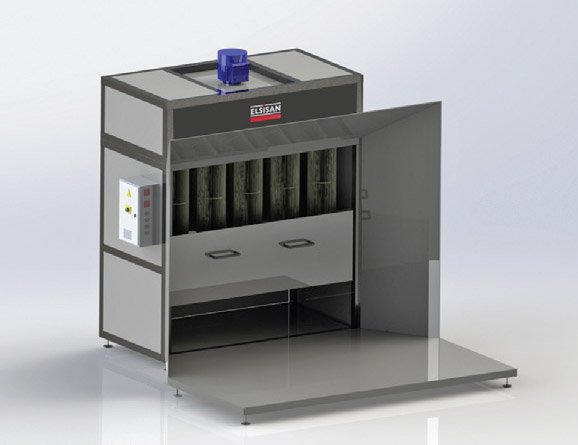

MAK 3 | 2200 x 2000 x 1850 | 3 | Open face design is ideal for customers with large parts and parts with variable different sizes. |
| MAK 4 | 2600 x 2000 x 1950 | 4 | ||
| MAK 5 | 3000 x 2000 x 1950 | 5 | ||
 |

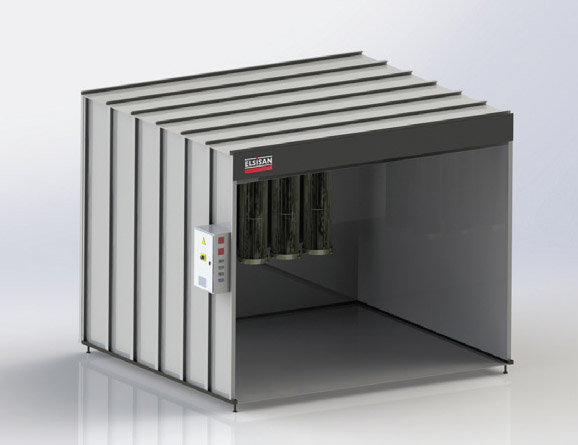

MYK 3 | 1200 x 2200 x 3000 | 3 | Walk in booths allow painters to walk inside the booth and take the products inside with the help of carts or racks. |
| MYK 4 | 1600 x 2200 x 3000 | 4 | ||
| MYK 5 | 2000 x 2200 x 3000 | 5 | ||
| MYK 6 | 2400 x 2200 x 3000 | 6 |
Customizaton to Fit Your Needs:
Elsisan’s manuel powder coating booths are fully customizable to match your specific needs, from dimensions to material and process requirements. We can design a solution that meets your exact specifications.
