Water Wash Spray Booths / Open Face

Get an Offer

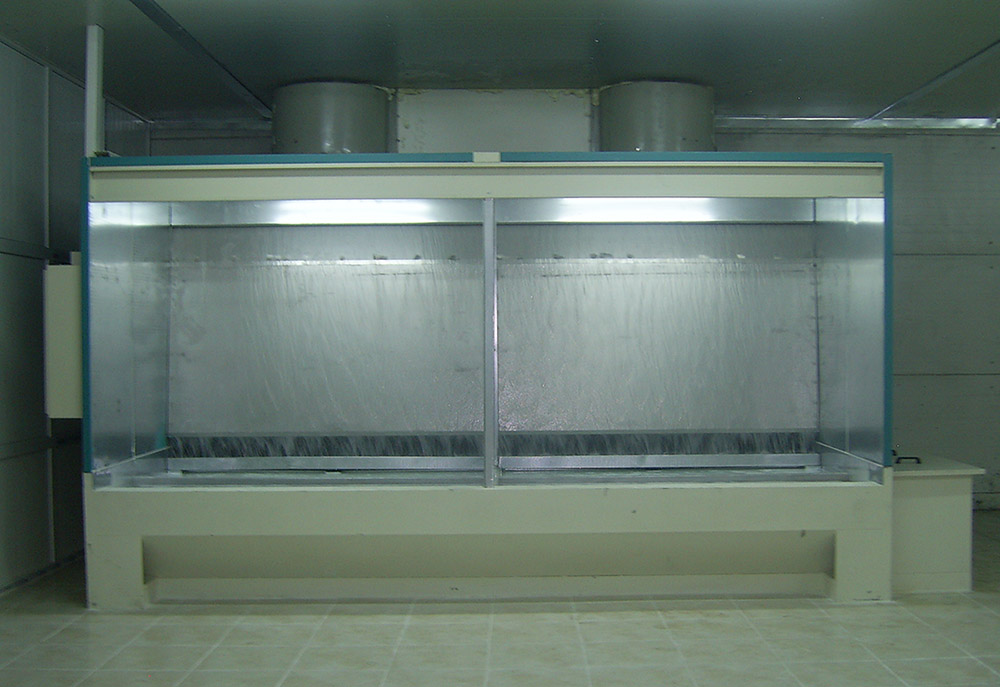

Open face water wash spray booths provide a safe and efficient painting area for industrial coating applications.

These spray booths use a water curtain system to capture and filter paint overspray, directing excess paint particles into a water basin for effective removal. The open-front design allows easy access for loading and painting large parts and equipment. Water wash spray booths help maintain clean air in the workspace, support compliance with worker health and safety regulations, and meet environmental standards for industrial painting operations.

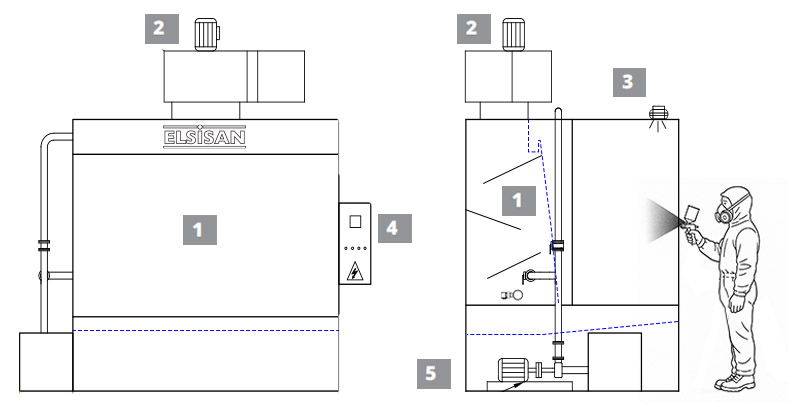

Key Elements of the Open Face Spray Booth
1Water Curtain
2Exhaust Fan
3Lighting
4Electric Panel
5Pump
Product Process Diagram

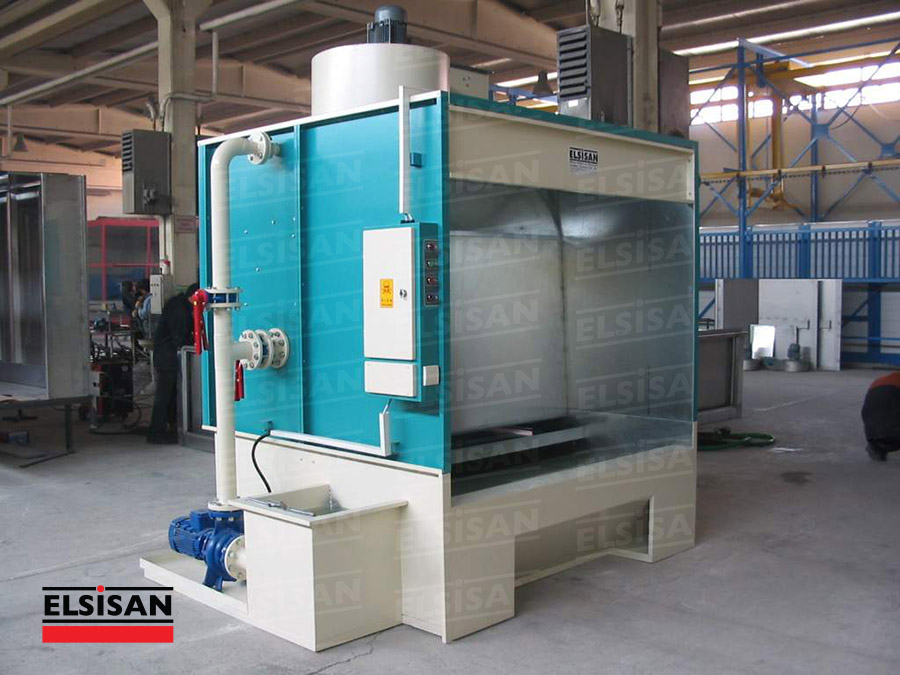

Shown model: YBM 25 Open Face Spray Booth
Features
  • Open front design for easy loading and unloading
  • Integrated LED booth lighting
Options
  • Extended depth or height configurations
  • Custom ducting and airflow solutions
Standard Models
Product Code Pump Flow Rate Pump Motor Fan Flow Rate Width (mm, Exterior) Height (mm, Exterior) Depth (mm, Exterior)
YBM-10 40 m³/h 2 kW 4000 m³/h 1000 2870 1850
YBM-20 40 m³/h 2 kW 6000 m³/h 2000 2870 1850
YBM-25 60 m³/h 3 kW 8000 m³/h 2500 2870 1850
YBM-30 60 m³/h 3 kW 10000 m³/h 3000 2900 1850
YBM-35 70 m³/h 4 kW 12000 m³/h 3500 2900 1850
YBM-40 70 m³/h 4 kW 14000 m³/h 4000 2900 1850

Customizaton to Fit Your Needs:

Elsisan's batch ovens are fully customizable to match your specific needs, from heating elements to material and process requirements. We can design a solution that meets your exact specifications.
