Our advanced automatic chain-on-edge spray coating machine delivers efficient, high-quality painting for small metal, plastic, and glass parts — all within a compact, cost-effective system designed for high-volume production

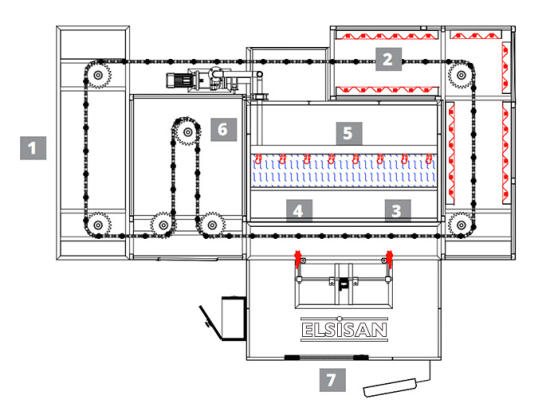

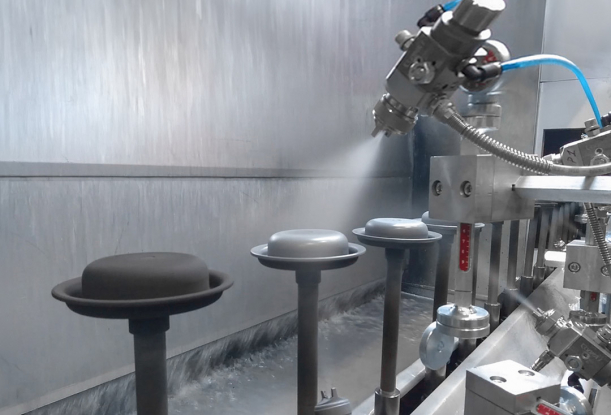

Automatic chain-on-edge / spindle type spray coating machine provides automatic painting to small-sized metal, plastic and glass products for high production numbers. With its compact structure, it can be installed in small areas and lowers investment and operating costs. The materials lined up on the apparatus in the loading zone pass through the surface preparation section in accordance with the process, are cleaned from the surface dust by antistatic air, if necessary, flamage application is made and they reach in front of the robot in the painting booth. Paint is applied to the rotating parts with a 2-axis robot. Then, it is circulated in the drying oven for the specified time and brought to the unloading section. All these operations are done automatically with the PLC system on the control panel. Different methods can be prepared and saved according to each different piece, thus preventing time losses and errors.
A Quick Look at Our Chain-on-Edge Spray Coating Lines
Watch this video for a quick look at the product's main features, technical options and usage details.
Our chain-on-edge spray coating systems are perfectly suited for a wide and diverse range of small to medium-sized products across multiple industries — including Automotive Trim and Accessories, Consumer Electronics, Home Appliances, Packaging Solutions, General Hardware, and Electrical Fittings — designed to meet the specific coating requirements of each product type.
- Automotive Mirror Covers
- Door Handles and Exterior Trim Parts
- Interior Automotive Plastic Components
- Control Knobs and Appliance Panels
- Cosmetic Packaging Closures and Caps
- Aerosol Cans, Bottles, and Containers
- Plastic and Metal Caps and Lids
- Electric Sockets, Switch Covers, and Outlet Faceplates
- Plug Housings and Electrical Enclosures
- Small Metal Fittings, Brackets, and Mounting Parts
- And much more

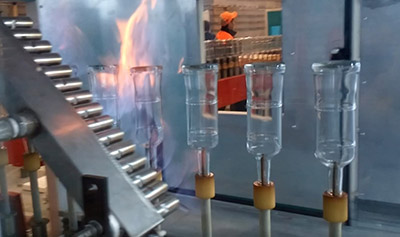

Pretreatment
There are variety of different pretreatment options depending on the material of your products. These options include, CO2 Snow Blasting, Flame Treatment, Ionisation/Anti-Static, Infrared (IR) preheating

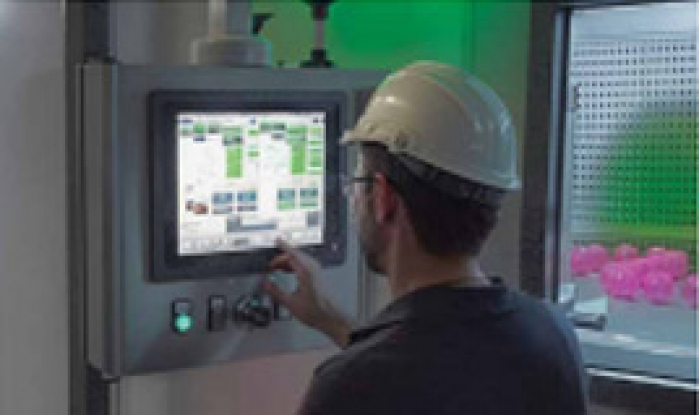

Control Panel
The touch panel simplifies control, enabling precise adjustments, temperature and ventilation monitoring, and secure data logging.

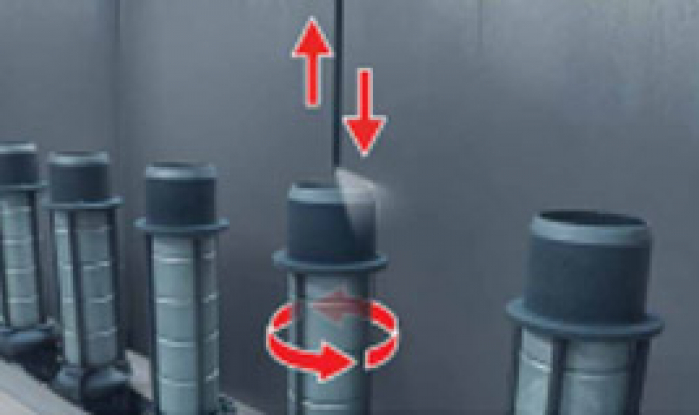

Interior Coating
Enhance your capability with an optional interior coating gun, perfect for parts requiring internal surface coating.
Spray coating booths are vital for coating lines, offering a controlled setting for high-quality applications. Equipped with superior ventilation and filtration, they minimize overspray and VOCs, ensuring a particle-free environment for flawless finishes. These booths can handle various part sizes and shapes, promoting consistent coating. Our booths feature two overspray filtration options:

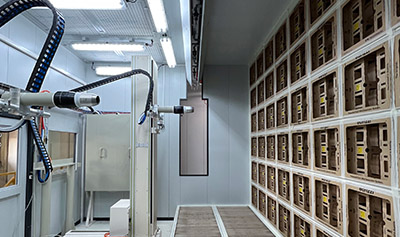

Dry Filter

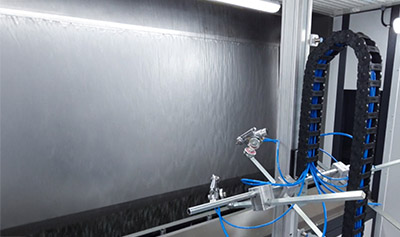

Water Screen

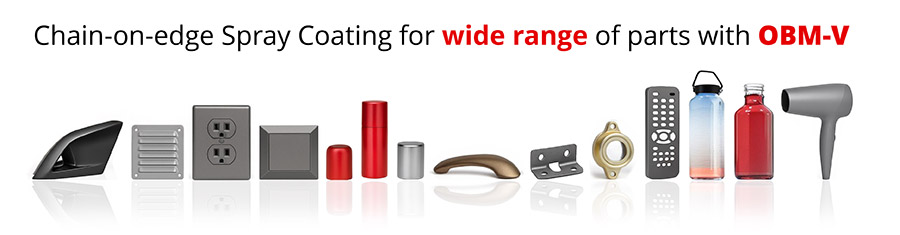

Our systems are perfect for a wide range of circular parts. In OBM-V models, all surfaces of the parts will be circumferentially sprayed. Parts can be vertically loaded on top of each other.
For the best-customized chain-on-edge spray coating line for your products, we need detailed information to ensure the system meets your needs and integrates seamlessly with your operations. Here's what we require:
Capacity
To accurately tailor your spray coating line for optimal performance, please specify your desired production capacity in units per hour.
Product Specs
Provide 2D drawings, photos, and if possible, 3D designs of your products to verify size and shape compatibility.
Paint Specs
Share the Paint Technical Data Sheet (TDS) for the chosen paint to adapt the line to specific flash-off times and curing processes.
Factory Layout
Detail the space allocated for the machine, including dimensions and any obstructions, for a custom fit.
