Batch ovens are used for various applications including drying, curing, baking, or heat-treating parts.
Box type ovens can be heated with electricity, natural gas, steam or oil. Box type ovens can have maximum heating capacity of 250°C. Box type ovens can be custom made depending on usage requirements and capacity. Customers can choose between several different door options. If desired, entrance and exit doors can be placed on the opposite sides of the oven.
A Quick Look at Our Box Type Ovens
Watch this video for a quick look at the product's main features, technical options and usage details.

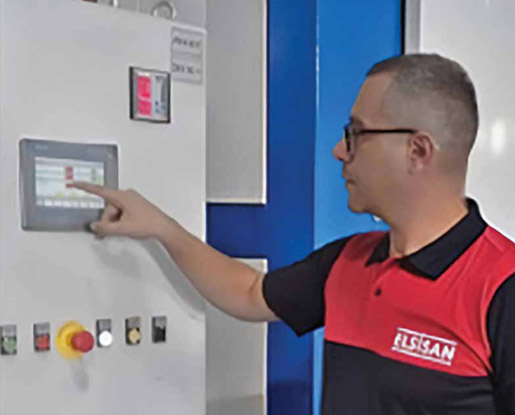

The touch panel streamlines oven management, allowing easy adjustments of settings. Control panel helps controlling operational parameters, recipe management and start timing functions.
- Touch Screen PLC Controller
- Control operational parameters
- Recipe Management
- Start Timer
Adjustable Air Vents
Adjustable air distribution vents helps in uniform distribution of heat all around the oven.
Insulated Panels
Insulated panels maintain consistent temperatures, reduce heat loss, and optimize thermal performance.
Product Transfer System
Overhead conveyor or transfer car can be chosen as a transfer system.
Our batch ovens offer diverse heating options to accommodate various energy sources, ensuring efficient and flexible process heating tailored to your needs.
Electricity
Natural Gas
Steam or OilOur batch ovens come with versatile air flow customization to enhance your process efficiency. Tailoring to your specific needs, we provide innovative solutions that ensure optimal thermal performance. Our designs are adaptable, allowing for precise control and uniformity to meet the unique requirements of your materials and applications. Additionally, custom air flow options can be provided to meet specific customer requirements.

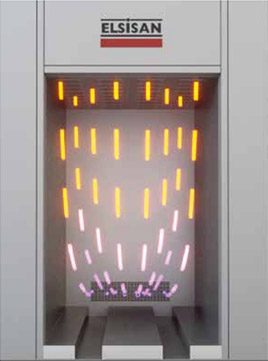

Top to Bottom

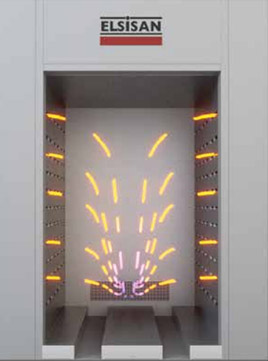

Sides to Bottom

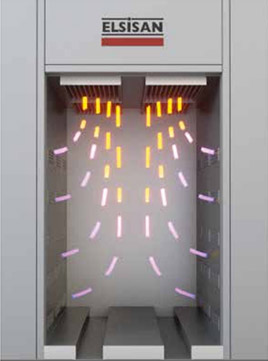

Top to Sides
Hinged Doors
Choose the perfect door type for your batch oven to enhance accessibility, functionality, and workflow efficiency in your operations.
Sliding Doors
Choose the perfect door type for your batch oven to enhance accessibility, functionality, and workflow efficiency in your operations.
Guillotine Doors
Choose the perfect door type for your batch oven to enhance accessibility, functionality, and workflow efficiency in your operations.
Customizaton to Fit Your Needs:
Elsisan's batch ovens are fully customizable to match your specific needs, from heating elements to material and process requirements. We can design a solution that meets your exact specifications.
Below you can find our range of standard industrial batch oven models, designed to meet the most common heat processing needs across various industries. Each model is engineered for reliability, efficiency, and consistent performance, making them ideal for applications such as curing, drying, baking, or heat treatment.
While our standard models cover a wide variety of sizes and specifications, we understand that every production process is unique. That’s why we also offer fully customized oven solutions, tailored to your exact requirements for size, temperature range, airflow pattern, controls, and special features.
| Product Code | Volume (m³) | Fan (piece) | Interior Dimensions (mm) (W x H x D) |
|---|---|---|---|
| EBF 100 | 0,8 | 1 | 800 x 1000 x 1000 |
| EBF 120 | 0,96 | 1 | 800 x 1000 x 1200 |
| EBF 150 | 1,8 | 1 | 1000 x 1200 x 1500 |
| EBF 201 | 2,4 | 1 | 1000 x 1200 x 2000 |
| EBF 202 | 3,6 | 1 | 1200 x 1500 x 2000 |
| EBF 251 | 4,8 | 1 | 1200 x 1500 x 2500 |
| EBF 252 | 5,25 | 1 | 1200 x 1750 x 2500 |
| EBF 300 | 6,3 | 1 | 1200 x 1750 x 3000 |
| Product Code | Volume (m³) | Fan (piece) | Interior Dimensions (mm) (W x H x D) |
|---|---|---|---|
| TBF 200 | 4,5 | 1 | 1200 x 1750 x 2000 |
| TBF 250 | 5,25 | 1 | 1200 x 1750 x 2500 |
| TBF 300 | 6,3 | 1 | 1200 x 1750 x 3000 |
| TBF 350 | 7,35 | 1 | 1200 x 1750 x 3500 |
| TBF 400 | 8,4 | 1 | 1200 x 1750 x 4000 |
| TBF 450 | 9,45 | 2 | 1200 x 1750 x 4500 |
| TBF 500 | 10,5 | 2 | 1200 x 1750 x 5000 |
| TBF 550 | 11,55 | 2 | 1200 x 1750 x 5500 |
| TBF 600 | 12,6 | 2 | 1200 x 1750 x 6000 |
| TBF 650 | 13,65 | 2 | 1200 x 1750 x 6500 |
| TBF 700 | 14,7 | 2 | 1200 x 1750 x 7000 |
| Product Code | Volume (m³) | Fan (piece) | Interior Dimensions (mm) (W x H x D) |
|---|---|---|---|
| JBF 400 | 8,4 | 1 | 1200 x 1750 x 4000 |
| JBF 450 | 9,45 | 2 | 1200 x 1750 x 4500 |
| JBF 500 | 10,5 | 2 | 1200 x 1750 x 5000 |
| JBF 550 | 11,55 | 2 | 1200 x 1750 x 5500 |
| JBF 600 | 12,6 | 2 | 1200 x 1750 x 6000 |
| JBF 650 | 13,65 | 2 | 1200 x 1750 x 6500 |
| JBF 700 | 14,7 | 2 | 1200 x 1750 x 7000 |
Customizaton to Fit Your Needs:
Elsisan's batch ovens are fully customizable to match your specific needs, from heating elements to material and process requirements. We can design a solution that meets your exact specifications.
