Manual Application Booths – KMK

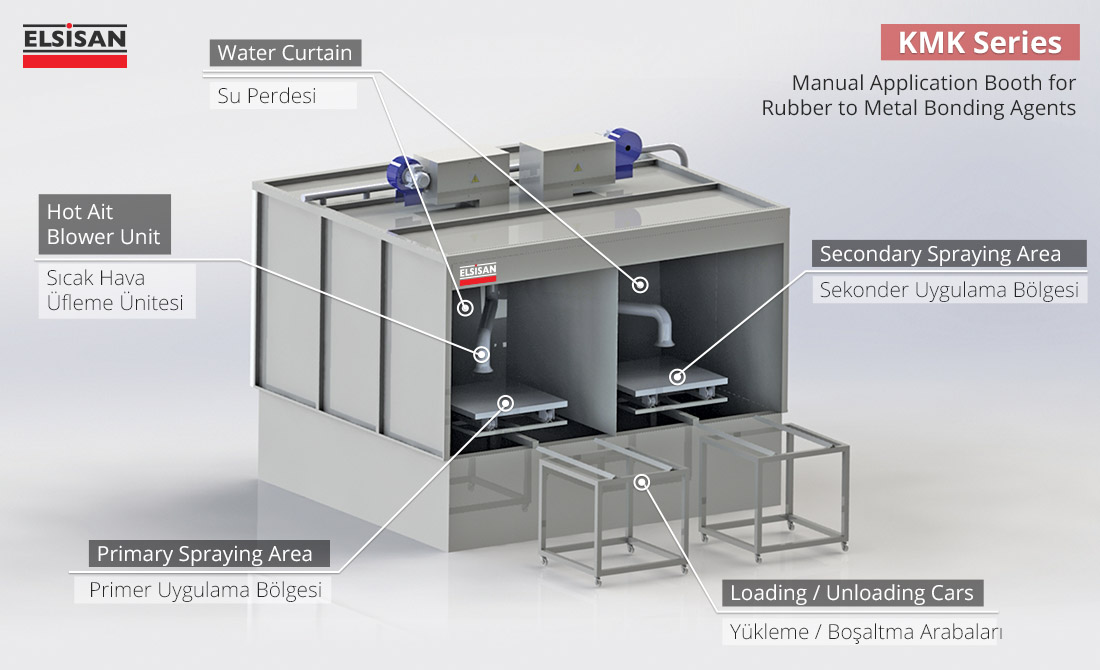

Applications in these machines are made using water curtain cabin and manual gun.

Manual rubber metal bonding agent application is done in water curtain cabin. Application is done with manual gun. There is a tray in the cabin to place the parts. The table is rotated manually. Drying is accelerated by blowing hot air into both gray and black adhesive application areas. The adhesive particles formed during the application are kept by the water curtain and nozzles and allow them to accumulate in the pool. Paint particles that are not captured by water are held by separators.

Treatment Systems:

Sludge Seperator can be integrated into the separator system to remove sludge from the water curtain cabin. Scraper made of stainless steel; automatically separates the adhesive sludge and extends the life of the cabin. It ensures that the water in the cabin stays clean at all times and also eliminates the need for extra maintenance for the cabin.
