The forefront of technology for the application of Rubber to Metal Bonding Agents

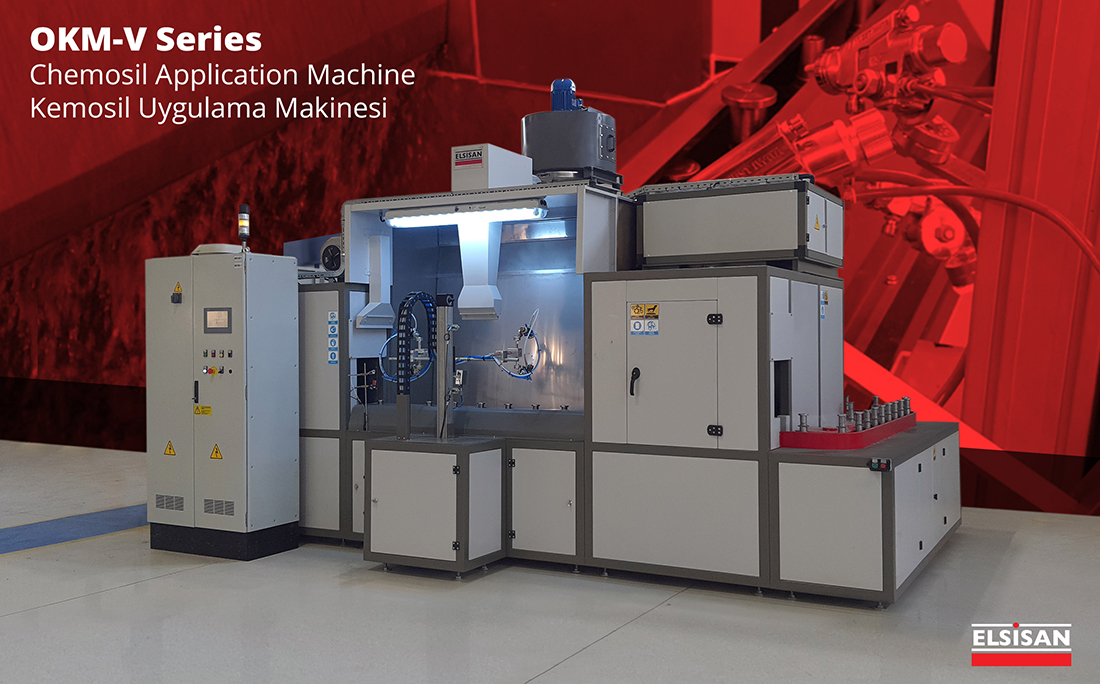

Spray application of Chemosil in the production of vibration-damping wedges and other rubber products is a crucial step. Our advanced system ensures a dual-layer application—primer and seconder—onto parts loaded on the machine. Equipped with vertically moving robots and precision spray guns, the OKM-V guarantees efficient, even coating and rapid drying, thanks to the preheating process that prepares the materials for immediate adhesion and efficient subsequent layering.
A Quick Look at Our Rubber to Metal Bonding Agent Spray Coating Lines
Watch this video for a quick look at the product’s main features, technical options and usage details.
Our systems are perfectly suited for a wide and diverse range of products across multiple industries — including Automotive Suspension Systems, Commercial Vehicle Components, Rail Transport Systems, Industrial Machinery, and Construction and Earthmoving Equipment — designed to meet the specific requirements of each product type.
- Cylindrical Bushings
- Control Arm Bushes
- Shock Absorber Bushes
- Pivot Bushes
- Sleeve Bushes
- Silent Blocks
- Bonded Rubber Mounts
- Torsion Bushes
- Anti-Vibration Bushes
- Metal-Rubber Isolators
- End Bushes
- Suspension Link Bushes
- And much more
Preheating
Infrared preheating prepares metal surfaces for primer application, enhancing overall adhesion and improving coating properties for layering.
Control Panel
The touch panel simplifies control, enabling precise adjustments, temperature and ventilation monitoring, and secure data logging.
Interior Coating
Enhance your capability with an optional interior coating gun, perfect for parts requiring internal surface coating.
Our systems are perfect for a wide range of circular parts. In OKM-V models, all surfaces of the parts will be circumferentially sprayed. Parts can be vertically loaded on top of each other.
The materials are placed on the machine by attaching to the apparatus on the hangers in the loading area. After the material passes through the preheating oven through step by step conveyor it reaches to the adhesive blooth. The gray color application will be applied to the turning material by using paint guns.
By blowing hot air on the materials, the drying of the gray adhesive will be accelerated and they will move to the black color application station. After black color application, materials move to drying oven and be ensured of drying of adhesive. Then the materials are unloaded in the unloading zone. The waste gas formed during the application is exhausted from the waste gas chimney by the fan on the booths.
The whole system controlled by PLC. Speed adjustment on every element on the machine is possible. For example, the speed of the material and conveyor can be adjusted. When a malfunction occurs in the system, it stops, gives fault signals and displays the possible cause of failure on the operator’s panel display.
For the best-customized spray coating line for glass products, we need detailed information to ensure the system meets your needs and integrates seamlessly with your operations. Here’s what we require:
Capacity
To accurately tailor your spray coating line for optimal performance, please specify your desired production capacity in units per hour.
Product Specs
Provide 2D drawings, photos, and if possible, 3D designs of your products to verify size and shape compatibility.
Paint Specs
Share the Paint Technical Data Sheet (TDS) for the chosen paint to adapt the line to specific flash-off times and curing processes.
Factory Layout
Detail the space allocated for the machine, including dimensions and any obstructions, for a custom fit.
